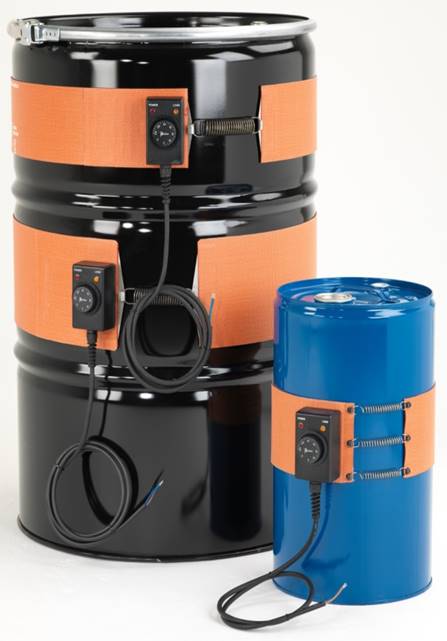

The ideal solution for heating products contained in steel drums.

The silicone side heater reduces the viscosity of materials such as soaps, fats, foodstuffs, varnishes and chemicals allowing them to be pumped or poured with ease. Products are marked with identification and batch numbers giving full manufacturing traceability. Branding with the client details and logo is available upon request.

Effective and simple the silicone side heater gives exceptional performance incorporating a 0-120c capillary thermostat or 0-180c electronic thermostat that delivers precise even heating from accurately positioned PTFE coated, multi-stranded resistance wires. These wires are laid widthways throughout the heater giving superior flexibility while negating the physical stress caused by thermal expansion during operation. Applying heat evenly to the product eliminates hot spots thus preventing damage to more sensitive materials such as sugars and glucose. A simple fixing arrangement via a hook and spring provides swift and easy insulation.

  • Silicone rubber insulated
  • Class II Double Insulated
  • IP40 Protection
  • 2m Power Cable
  • Simple spring fixing
  • Moisture and Chemical Resistant
  • Bespoke Sizes to Order

Power rating: 110 or 230 Volts
Temperature Control: 0-120 C

Drum Size: Wattage: To Suit Drum Size:
125mm x 800mm 300 Watts 25L
125mm x 940mm 500 Watts 50L
125mm x 1300mm 800 Watts 105L
125mm x 1665mm 1000 Watts 200L
180mm x 1665mm 1000 Watts 200L
180mm x 1665mm 1500 Watts 200L

Health And Safety

All drum heaters are manufactured to conform to the EEC low voltage and EMC directives and CE marked accordingly. It is advised that power to the drum heater be disconnected when the drum is either empty or being filled, or upon installation or removal of the heater itself. It is recommended that the unit be operated in a dry environment with the drum vented to avoid build up of internal pressure.
