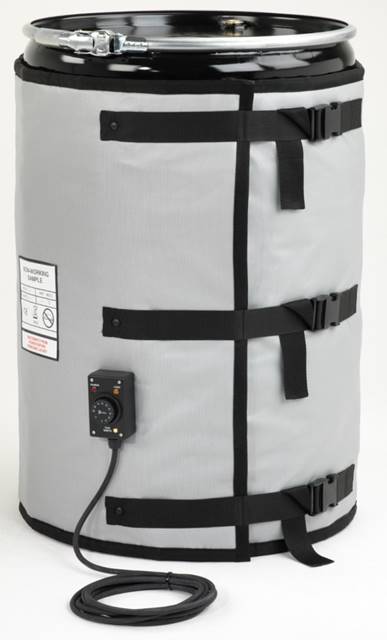

An alternative to the insulated drum heater for heating metal drums to higher temperatures.

Four standard sizes are available for drums of 25L, 50L, 105L and most commonly the 200L. All four sizes of drum heaters have their own internal insulation ensuring optimum thermal efficiency. High temperature insulated drum heaters are specifically designed for the melting or reducing the viscosity of products that require higher powers than can't be achieved with the standard insulated type.

The double insulated heating element of the HTSD range of side drum heaters is stitched into a jacket made from silicone coated glass cloth, insulated with a stitched blanket of needled silica glass complete with quick release buckles for ease of installation and removal. All high temperature insulated drum heaters are supplied with 4 metres of power cable and controlled via a fitted 20-220°C thermostat.

Jacket Material: Silicone glass fibre cloth
Insulation: Glass filament blanket
Element: Silicone insulated spiral wound resistance element
Control: 20-220c Adjustable thermostat
Power Cable: 4 Metre H07RN-F
Fixing: Nylon webbing with quick release adjustable buckles

  • Silicone glass fibre cloth outer jacket
  • Glass filament blanket insulation
  • Class II Double Insulated
  • IP40 Protection
  • 4m Power Cable
  • Adjustable Quick Release Buckles
  • Bespoke Sizes to Order

Power rating: 110 or 230 Volts

Standard sizes: 25L, 50L, 105L & 200L

Health And Safety

All drum heaters are manufactured to conform to the EEC low voltage and EMC directives and CE marked accordingly. It is advised that power to the drum heater be disconnected when the drum is either empty or being filled, or upon installation or removal of the heater itself. It is recommended that the unit be operated in a dry environment with the drum vented to avoid build up of internal pressure.
